The PlanxTone

Narrative
This was created to demonstrate a range of techniques. The capacitive sensing has been set to detect fingers a range of 2cm above the keys. Essentially a contact-less keyboard.. The keys are made from strips of printed circuit board, polished and then varnished along with the wood. Function changing is achieved using rotary switches. These are wired to give either a binary output, or use an analogue restive network. The keys have been angled purely for artistic merit so as to distinguish this device from a conventional keyboard.

PlanxTone

Components Description / Hardware Functional Areas
Bare Conductive Board

Bare Conductive

  • This is a multifunction board that combines.
  • Sound file playing (MP3 or MIDI)
  • Capacitive Sensors
  • On board processor (Leonardo eqv of an Arduino).
  • Can be power by LIPO battery or external regulated 5v supply.
Sound creation
  • Flute, Piano, Guitar
  • Drum
  • 3.5mm and 1/4in stereo jack sockets
  • Octave shifter
  • Key shifter: C, G, D and F majors
  • MIDI synthesis.

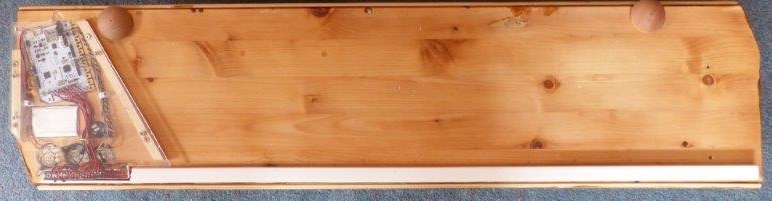

Rear of planxtone. The strips of PCB are wired back to he capacitive inputs on the Bare Conductive processor board. After some prior experiment it was found running the connecting wires close together via the square conduit did not cause any "cross-talk". Planxtone_Rear

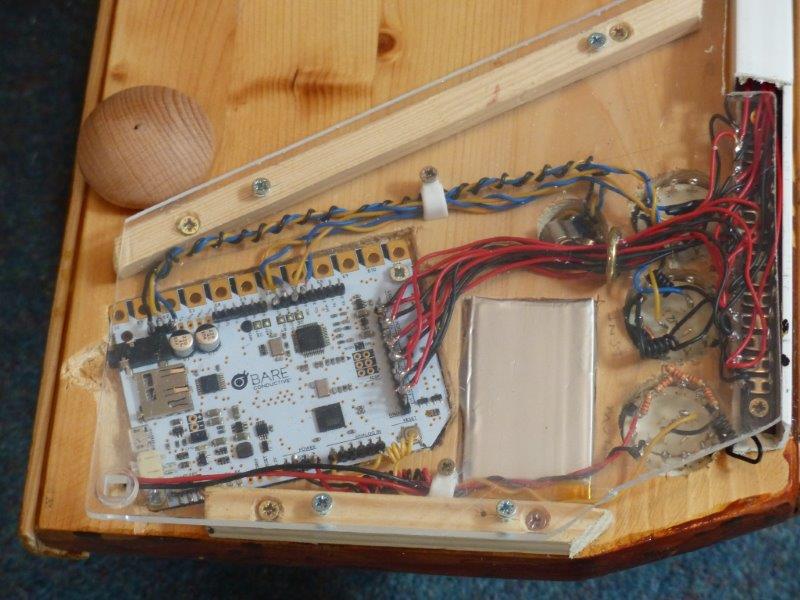

Processor plus function selection switches and wiring.The bottom switch uses a resistive ladder network via the A0 analogue pin. The other two rotary switches are wired to pins 4,5,6 and 7 giving 00, 01, 10, 11 binary selections. Wiring

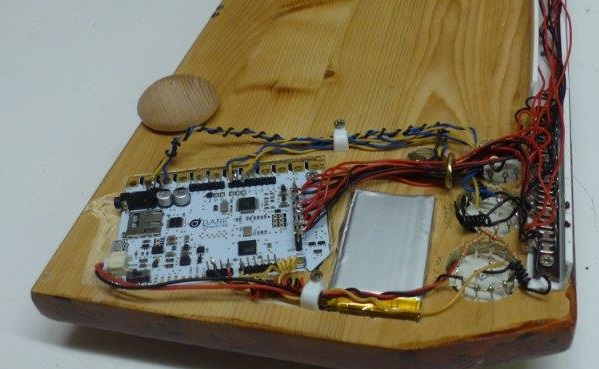

Proximity sensors wired in. Procimity senors / PCB slices wired in

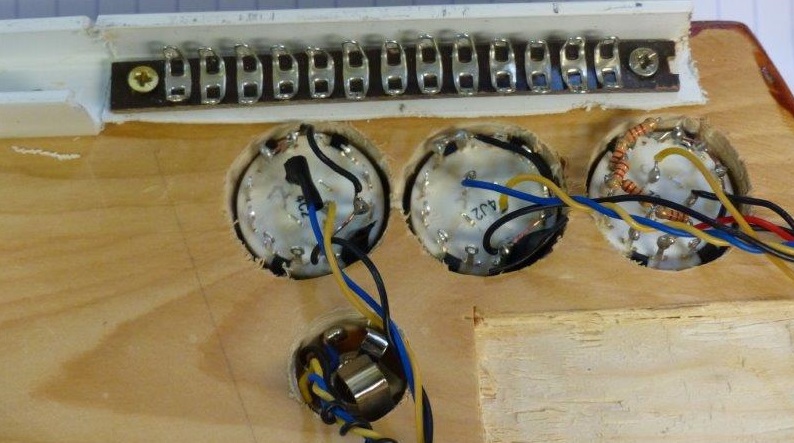

Controls Wired In Controls Wired In

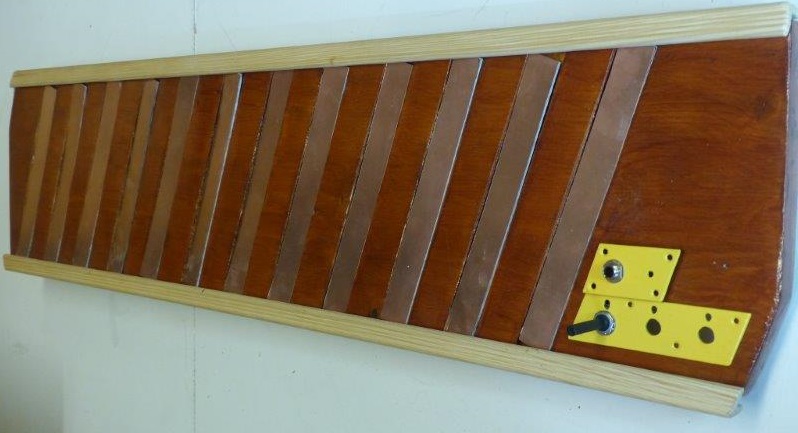

Control Panel Added Control Pannel Added

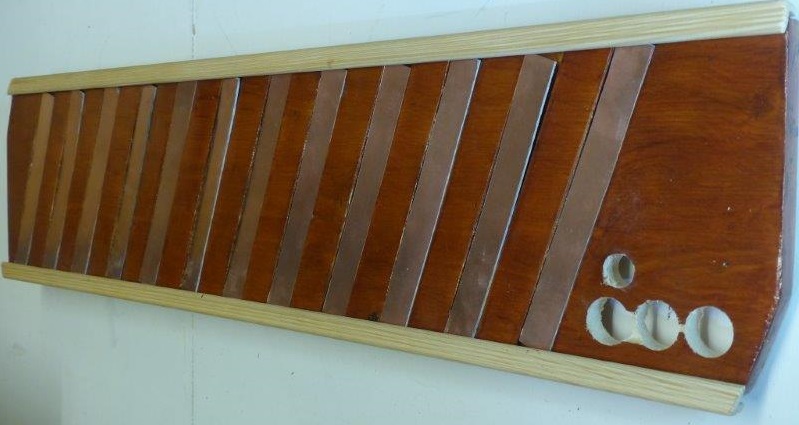

Done Done

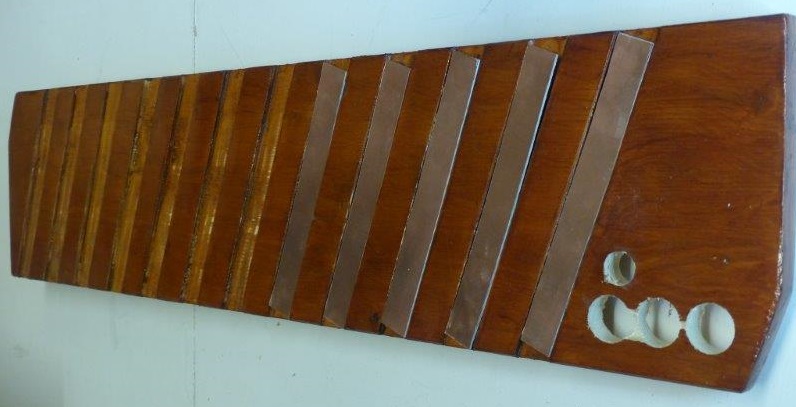

And some more And Some More

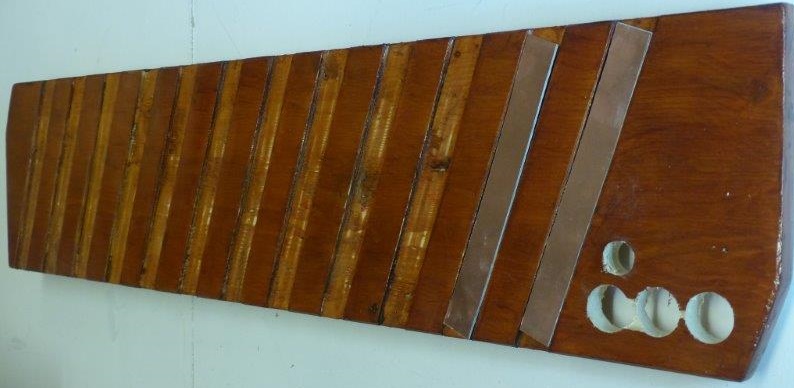

Plank varnished, fitting PCB slices, i.e. proximity contacts Adding Proximity Contacts

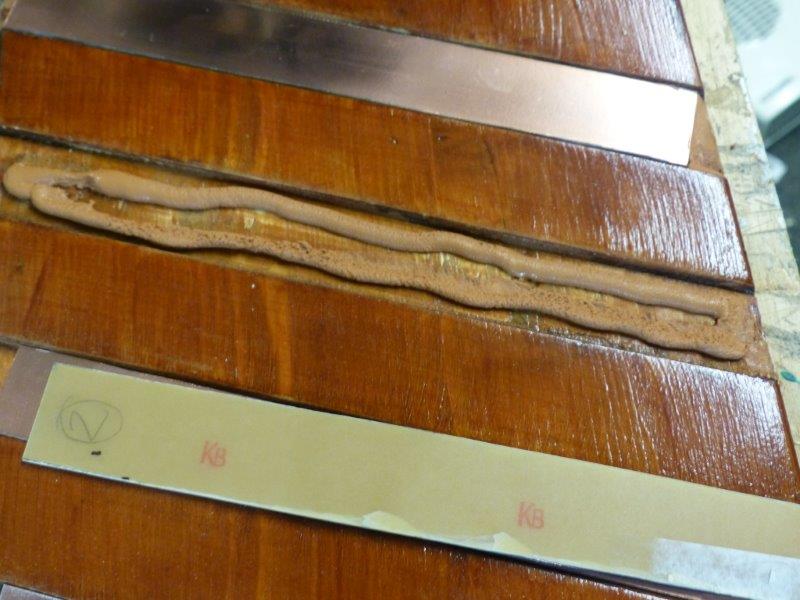

Gluing Gluing

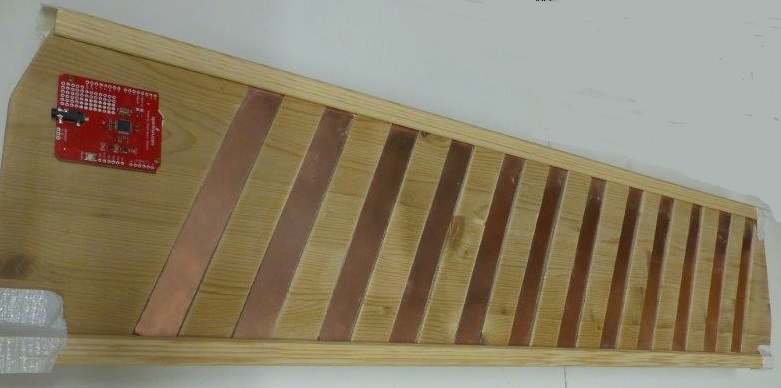

Checking the fitting of PCB slices

Checking Fitting of Proximity Slices

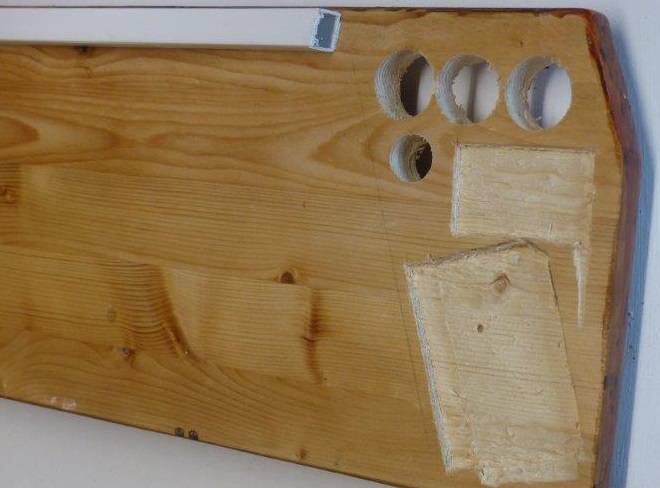

Control Switch Cut Outs Control Switch Cut Outs

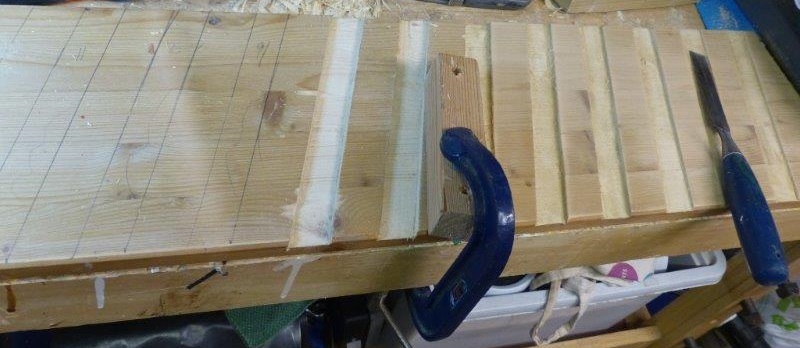

Slots Cut In Plank Cutting Slots
12 Slices of PCB 12 Slices of PCB

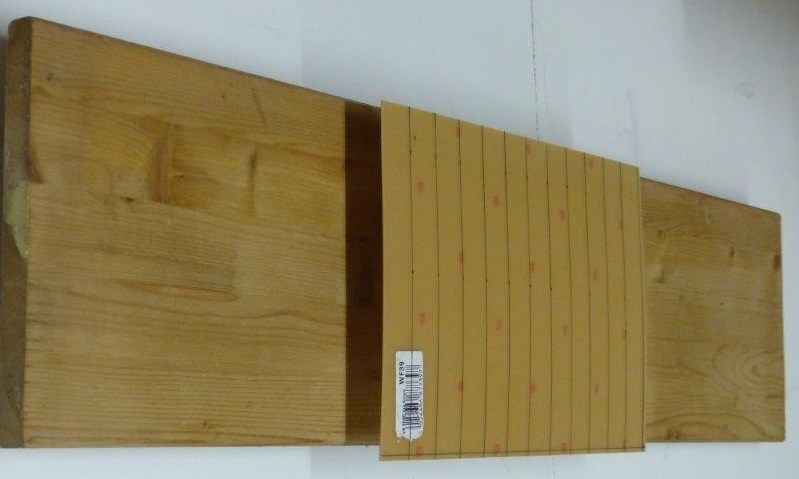

Plank and Blank PCB Plank and Blank PCB
